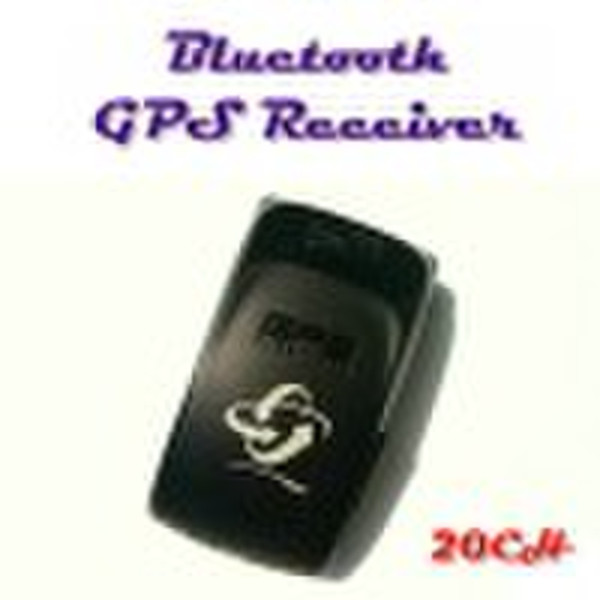

Min Bluetooth GPS Receiver 20CH

GPS receiver with Bluetooth interface and built-in antenna for high sensitivity to track signal. Based on the SiRF star III Low power consumption chipset and supports all functions (Single Sat updates in reduced visibility, Superior urban canyon performance, Foliage Lock for weak signal tracking, etc.). The BTGP39 is well suited to system integrations including PDA, Smart phone, Tablet PC and Notebook PC with Bluetooth devices. It satisfies a wide variety of applications that are purposes in automotive and outdoor recreation navigation systems. Package Before you start up, make sure that your package includes following items. If any item is missing or damaged, please contact your dealer immediately. Bluetooth GPS Receiver User Manual AC Power Charger DC Car Power Charger Battery Power Jack The power jack lets you connect either a DC car power charger (included) or AC power charger (included) to recharge the internal battery. Please note that the adapter rating is 5V, 1.2 A, positive pole center. LED Function Bluetooth Status LED (Blue): Blinking (Quickly) ---- Not connected to any Bluetooth device. Blinking (Slowly) ----Connected to other Bluetooth device. GPS Status LED (Green): Blinking ---- GPS position is fixed Steady light ---- GPS position is not fixed Battery Status LED (Red/Yellow): Red ---- Battery is charging now. LED off ---- Battery is fully charged during charging. Power-saving Function When you start the power of the Bluetooth GPS Receiver BTGP39, if the Bluetooth is not connected to any devices within 10 minutes, BTGP39 will turn off the power automatically, and all the LED will go off simultaneously. Specification 1 System Specification Electrical Characteristics (Receiver) Frequency L1, 1.57542 MHz C/A Code 1.023 MHz chip rate Channels 20 all-in view tracking -159 dBm Accuracy Position Horizontal 10m 2D RMS (SA off) WAAS enabled 5m 2D RMS (SA OFF) Time 1 micro-second synchronized to GPS time Velocity 0.1m/sec 95 %( SA off) Datum Datum WGS-84 Acquisition Rate Hot start 1 sec., average (with ephemeris and almanac valid) Warm start 38 sec., average (with almanac but not ephemeris) Cold start 42 sec., average (neither almanac nor ephemeris) Reacquisition 0.1 sec, average (interruption recovery time) Protocol GPS Output Data NMEA 0183 protocol, and supports command GGA (1sec), GSA (1 sec), GSV (5 sec), RMC (1sec)( VTG and GLL are optional) GPS transfer rate 9600,N, 8 , 1 Dynamic Condition Acceleration Limit Less than 4G Altitude Limit 18,000 meters (60,000 feet) max Velocity Limit 515 meters/sec. (1,000 knots)max Jerk Limit 20m/sec**3 Power Voltage Built-in rechargeable battery(750 mAh) and 5V DCinput Charging circuit Operation Time 15 hr. After fully recharged, in continuous mode >20 hr in Trickling power mode Physical Characteristics Dimension 72.5mm x 40.4mm x 26mm Weight 70 g Humidity Up to 95% non-condensing 2 Bluetooth Specification Bluetooth V2.0+EDR Compliant Supply Voltage: 2.8V 3.3V Frequency Range: 2.402 2.480 GHz Receiver Sensitivity: -80 dBm Transmit Power: Class 2 Transmitting Range: 10 m (Depends on environment) Power Consumption: 30 mA (Typical)
